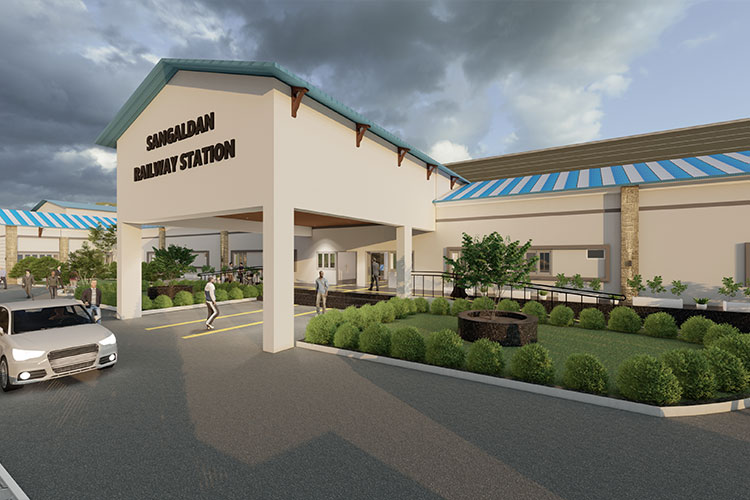

Sangaldan Railway Station

Project Name : Development of Master plan and Architectural & Structural Designing for Construction of Station Building, GRP building, RPF building and Circulation Area etc. at Sangaldan under Udhampur-Srinagar-Baramulla-Rail link Project.

Client : Konkan Railway Corporation Limited

Main components of Work: - Development of Station Building, GRP building, Platform amenities, RPF building and Circulation Area & Foot over Bridge etc.

The important works carried out by the consultant in the Detailed Project Report are listed below:

GFC works (Architecture and Engineering)
•    Master Plan
•    Architecture Design and Drawings
•    Structural Design and Drawings.

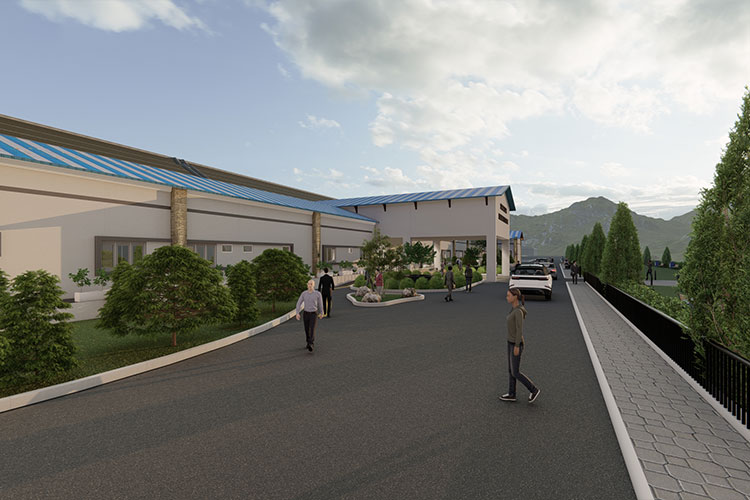

•    Electrical Design and Drawings. 5. 3D Views
•    Façade Design.
•    Plumbing Design and Drawings.
•    Water supply Design and Drawings 9. MEP Design and Drawings.
•    10. Preparation of BOQ.
•    11. Urban Design for Circulation & Parking Area etc.
•    12. Approach Road and Retaining wall
•    13. Landscape Design.
•    14. Sewerage and Drainage Design
•    15. Expert Site Visits during design and implementation

Total Area of the Project = 20800 Sqm. (approx.)
Total Built up area = 14000 Sqm. (approx.)
Total Cost of the Project = 42 cr. (approx.)
